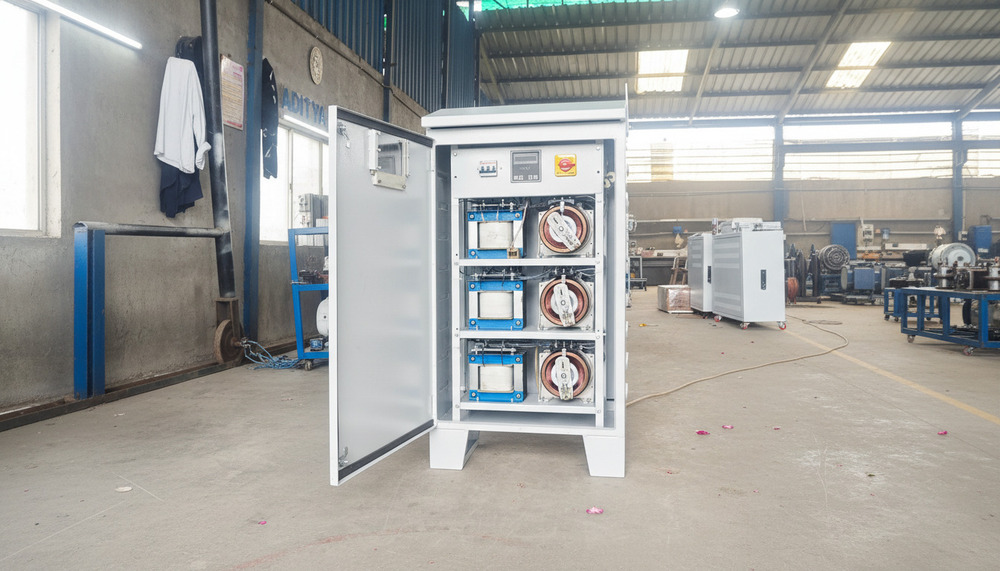

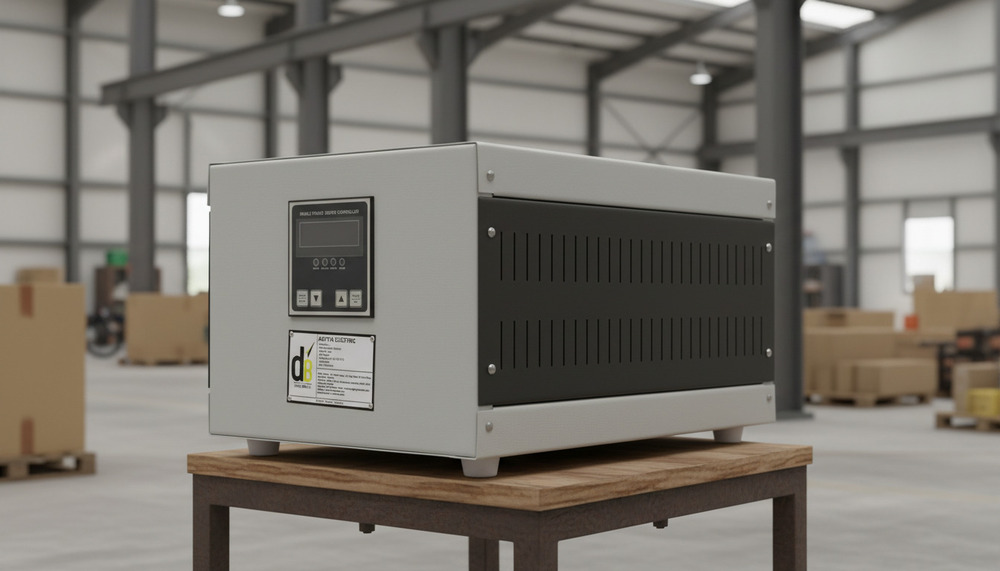

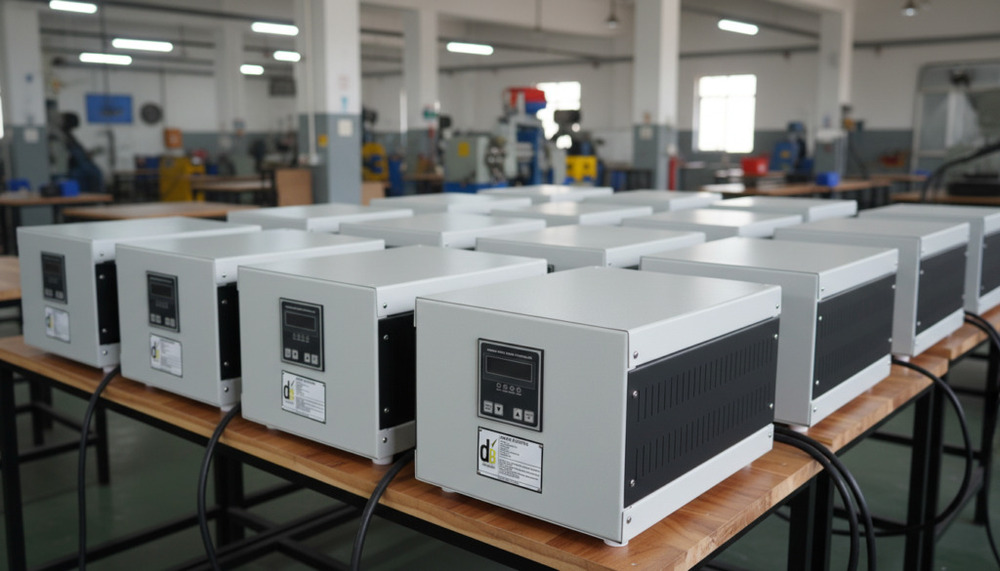

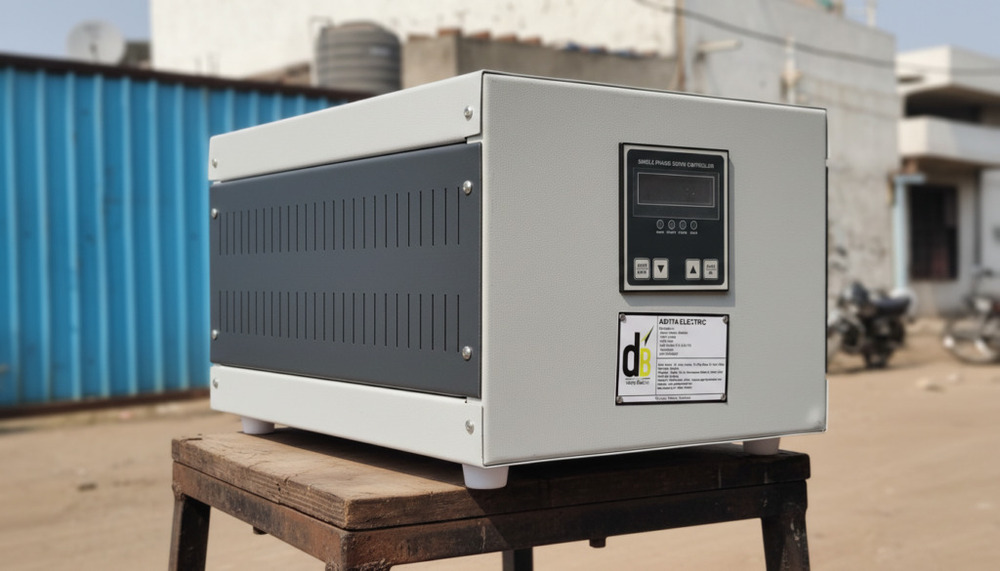

Servo Controlled Voltage Stabilizers

Get a Price/Quote

MOQ : 1 Unit

Servo Controlled Voltage Stabilizers Specification

Output Current
Up to rated load current

Input Voltage
160-260V / 140-280V / 300-470V (as per requirement)

Output Voltage
220V / 230V / 415V (as per model)

Efficiency
Above 95%

Frequency (MHz)
50/60 Hz

Phase
Single Phase / Three Phase

Current
As per load capacity

Weight
Depends on power rating (varies with model)

Ambient Temperature
0C to 50C

Degree of Protection
IP20 / IP21 (Cabinet Protection Grade)

Control System
Automatic Servo Motor Control (microprocessor based circuitry)

Usage
Industrial / Commercial / Household Applications

Design
Floor-mounted, closed-cabinet design

Insulation Resistance
>2M Ohms at 500V DC

Voltage Protection
Under/Over Voltage Protection Features

Display
Digital / Analog Meter Display

Dimension (L*W*H)
Varies as per model (Customizable sizes available)

Rated Power
1 KVA to 500 KVA (model dependent)

Current Type
AC

Waveform Distortion
Negligible / Nil

Product Type
Servo Controlled Voltage Stabilizer

Operating Humidity
Up to 95% RH (non-condensing)

Input Cable Length
Customizable as per requirement

Bypass Facility
Manual / Automatic Bypass Available

Short Circuit Protection
Built-In

Transformer Type
Copper Wound (standard)

Overload Protection
MCB / MCCB Provided

Cooling Type
Air Cooled (up to 40 KVA), Oil Cooled (above 40 KVA)

Input / Output Connections
Terminal Blocks / Cable Glands

Correction Speed
10-30 Volts/sec (depending on model)

Noise Level
<60 dB at 1 meter

Grounding
Provided with Proper Earthing Terminal

Alarm System
Audio/Visual Alarm for Fault Conditions

Mounting Type
Floor / Wheel Mounted

Remote Monitoring
Optional (via IoT/Network Modules)

Enclosure Material
Powder Coated CRC Sheet

Servo Controlled Voltage Stabilizers Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Servo Controlled Voltage Stabilizers

Step into the spotlight of voltage protection with our Servo Controlled Voltage Stabilizers, a towering marvel in reliable power management. Designed with copper wound transformers and robust powder-coated CRC enclosures, these noteworthy stabilizers offer correction speeds of 10-30 volts/sec and operate efficiently in high-humidity conditions. Popular across diverse industries, they feature marvelous safety with integrated MCB/MCCB, remote monitoring (optional), and both air and oil cooling based on capacity. Order yours today for efficient, quiet (<60 dB), and fully protected operation-making them a standout choice for demanding Indian environments.

Versatile Application and Usage Advantages

Our Servo Controlled Voltage Stabilizers are engineered for application surfaces ranging from industrial and commercial to household environments. The usage type spans single phase to three phase, adapting seamlessly to specific voltage and load requirements. Whether deployed for machinery protection, sensitive equipment, or entire building voltage regulation, these stabilizers deliver robust performance and outstanding reliability, even under challenging ambient temperatures. The flexibility in output connection and mounting options ensures they fit effortlessly into your operational setup.

Sample Availability and Global Export Reach

We understand the need for evaluation before large orders; hence, samples of our marvelous stabilizers are available upon request. Receive a precise quotation including freight charges for your region, making it easy to plan your logistics. Our main domestic market is India, but these products are also popular in key export markets across the globe, ensuring dependable voltage regulation is always within reach. Experience efficient support for both national and international shipping requirements.

FAQ's of Servo Controlled Voltage Stabilizers:

Q: How does the servo control system in these voltage stabilizers operate?

A: The servo controlled system uses microprocessor-based circuitry to monitor voltage fluctuations in real-time. When a change is detected, a servo motor quickly adjusts transformer taps, ensuring the output voltage remains within the desired range. This process delivers rapid correction speeds between 10 and 30 volts per second, depending on the model.

Q: What types of cooling do the Servo Controlled Voltage Stabilizers offer?

A: For capacities up to 40 KVA, air cooled systems are provided, while models above 40 KVA use oil cooled mechanisms. This allows for optimal thermal management and longevity, regardless of stabilizer size or operational environment.

Q: When should I consider using a Servo Controlled Voltage Stabilizer?

A: You should use a servo controlled stabilizer whenever consistent power quality is critical-such as in industrial manufacturing, commercial facilities, or residential complexes with sensitive equipment. They are essential where voltage fluctuations can lead to operational issues, safety concerns, or equipment damage.

Q: Where can these stabilizers be installed and how are they mounted?

A: These voltage stabilizers are designed for floor or wheel-mounted installation, making them suitable for a variety of settings ranging from factories to office buildings and homes. Their compact, closed-cabinet design ensures safe and efficient placement almost anywhere power regulation is needed.

Q: What are the main benefits of using this stabilizer for industrial applications?

A: Key advantages include high efficiency (over 95%), minimal waveform distortion, reliable overload and short-circuit protection, audio/visual alarms, and remote monitoring capability. This makes them ideal for protecting sensitive industrial equipment and maintaining uninterrupted, safe operations.
