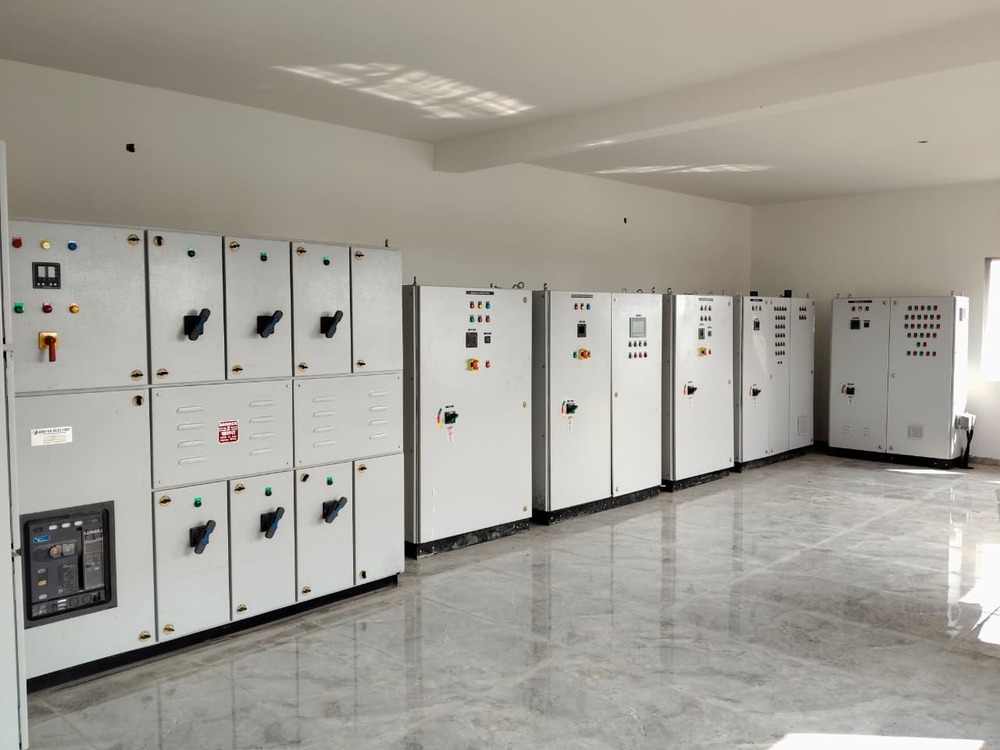

PDB Panel

Get a Price/Quote

MOQ : 1 Unit

PDB Panel Specification

Cooling System
Natural Air or Forced Ventilation

Rated Operation Voltage
415V

Rated Insulation Voltage
690V AC

Protection Level
IP42 / IP54 / IP65 (optional)

Current Rating
Up to 1600A

Operating Voltage
415V AC

Cover Material
Mild Steel/Glass Window (optional)

Connectivity Type
Cable Entry (Top/Bottom or Client Specific)

Panel Type
Main/Feeder/Distribution Panel

Features
Weather Proof, Corrosion Resistant, Modular Design, Easy Maintenance

Cabinet Material
Powder Coated Steel

Protection Class
Class I

Rated Current
Up to 1600A

Components
MCB, MCCB, Busbar, Metering, Relays, Indicators

Base Material
Mild Steel

Thickness
1.6mm to 2.5mm

Control System
Manual/Electrical

Way
As specified (Customizable)

Product Type
Power Distribution Board (PDB) Panel

Material
Mild Steel (MS)/Sheet Metal

Surface Finish
Powder Coated

Standard
IS 8623 / IEC 61439

Surface Color
Powder Coated Grey/White

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 1600A

Dimension (L*W*H)
As per customer requirement

Application
Industrial/Commercial Power Distribution

IP Rating
IP42 / IP54

Display Type
Analog/Digital Metering

Busbar Material
Electrolytic Copper or Aluminum, Tin Plated

Cable Entry/Exit
Top/Bottom Entry as per Site Requirement

Mounting Type
Floor Mounted (Standalone or Joined)

Panel Design
Compartmentalized Construction

Degree of Protection
Customizable up to IP65

Ambient Temperature Range
-10C to 50C

Inspection Window
Available (On Request)

Neutral Link
Provided

Earth Busbar
Copper/Aluminum

Enclosure Type
Indoor/Outdoor

PDB Panel Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About PDB Panel

Take advantage of our dazzling new release - the finest PDB Panel, engineered for unrivaled performance in industrial and commercial power distribution. This panel offers a customizable, compartmentalized construction with floor-mounted options, accommodating top or bottom cable entry as per site needs. Equipped with copper or aluminum busbars, corrosion-resistant mild steel enclosure, and a powder-coated finish, it ensures lasting reliability. Enjoy the peace of mind with an IP rating up to IP65 and adherence to IS 8623/IEC 61439 standards. Make the smart choice-offer your facility the best.

Optimized Usage and Application Versatility

Our PDB Panel is meticulously designed to serve as the main, feeder, or distribution panel for both industrial and commercial applications. Suitable for a wide array of surfaces, it features a robust powder-coated enclosure for indoor or outdoor installation. Whether deployed for power distribution in factories, commercial complexes, or large institutions, this standalone or joined unit adapts seamlessly to diverse operational demands, delivering reliable electricity management in any demanding environment.

Reliable Supply, Timely Delivery, and Transparent Valuation

Our PDB Panels are manufactured and supplied across India with strong supply ability and prompt fulfillment. Once the order is confirmed, these panels are delivered within an industry-standard timeframe that fits your project planning. Valuation is clear and competitive - our asking price is shared upfront during the quotation process, allowing for smooth decision making. Flexible payment terms can be discussed, supporting both ongoing relationships and one-time purchases.

FAQ's of PDB Panel:

Q: How does the PDB Panel ensure reliable performance in harsh environments?

A: The PDB Panel features a weatherproof, powder-coated mild steel enclosure, available with customizable IP ratings up to IP65. This protects vital components from dust, moisture, and corrosion, ensuring reliable operation even in tough industrial or outdoor settings.

Q: What is the process for customizing cable entry and dimensions for site-specific requirements?

A: Customers can specify top or bottom cable entry and custom panel dimensions during the ordering process. Our engineering team collaborates with clients to ensure seamless integration with existing site infrastructure and unique project needs.

Q: Where can these PDB Panels be installed, and what surfaces are suitable?

A: These panels are suitable for both indoor and outdoor installations. Thanks to their modular design and corrosion-resistant construction, they can be floor mounted on a variety of surfaces in industrial plants, commercial buildings, or institutional facilities.

Q: What are the key benefits of the compartmentalized construction in the PDB Panel?

A: Compartmentalized construction enhances safety, allows easy maintenance, and provides organized housing for MCBs, MCCBs, busbars, meters, relays, and indicators. This design also ensures electrical isolation and reduces downtime during servicing.

Q: When should an organization consider upgrading to a new PDB Panel?

A: Organizations should consider upgrading when expanding their electrical infrastructure, enhancing safety measures, or when compliance with the latest standards (IS 8623/IEC 61439) becomes necessary to support higher current ratings or enhanced protection levels.
